Alliance Machining Capabilities

Alliance has over 11,000 square feet and 20 machines dedicated to manufacturing customer components. We cut, mill, and turn a variety of metals to create precision parts. While we handle runs of all sizes, we specialize in small and medium-sized runs.

Below is a summary of our current capabilities. If you'd like more specifics about our either our capabilities or planned investments, contact us today.

Milling

Milling

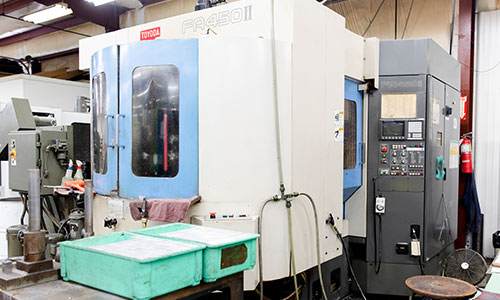

Horizontal Milling Centers

  1. QTY: 3
  2. Max Spindle Speed: 12000 RPM
  3. Min Tolerance: 0.0001"
  4. Max Travel Distance: 23" x 23" x 23"
  5. Max Weight Capacity: 880 lbs
  1. 4th Axis
  2. Automatic Tool Changers
  3. Through Spindle Coolant Capability
  4. Automatic Pallet Changer

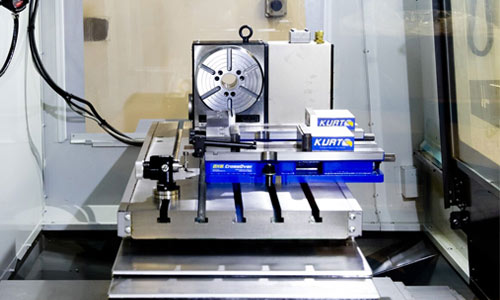

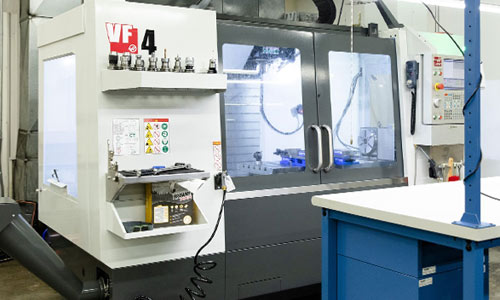

Vertical Milling Centers

  1. QTY: 5
  2. Max Spindle Speed: 15000 RPM
  3. Min Tolerance: 0.0001"
  4. Max Travel Distance: 50" x 20" x 29.2"
  5. Max Weight Capacity: 3500 lbs
  1. 4th Axis Rotary
  2. Automatic Tool Changers
  3. Through Spindle Coolant Capability

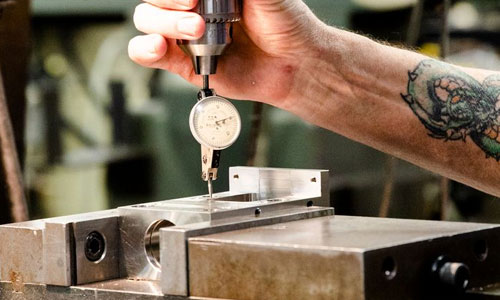

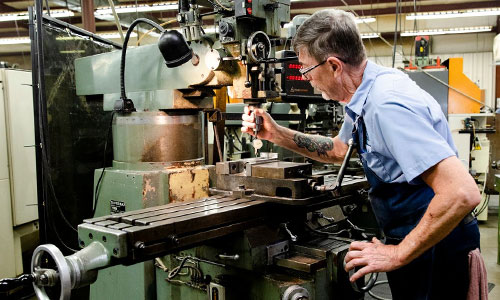

Manual Mills

  1. QTY: 4
  2. Max Spindle Speed: 4200 RPM
  3. Min Tolerance: 0.0005"
  4. Max Travel Distance: 36" x 22" x 20"
  1. DRO's
Turning

Turning

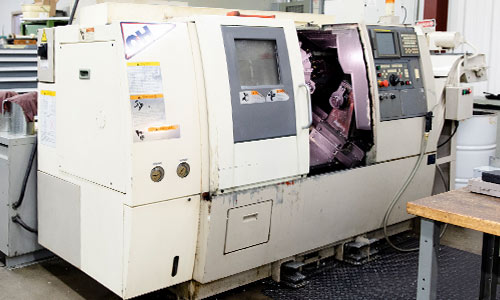

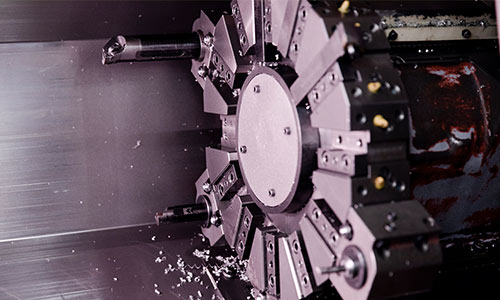

Lathe Turning Centers

  1. QTY: 12
  2. Max Speed: 6000 RPM
  3. Max Turning Diameter: 11.8"
  4. Max Turning Length: 20"
  5. Min Tolerance: 0.0001"
  1. Bar Feeding Capability
  2. Automatic Tool Changers
  3. Through Tool Coolant Capability

Lathe Turning Centers

  1. QTY: 4
  2. Max Speed: 4000 RPM
  3. Max Turning Diameter: 12"
  4. Max Turning Length: 36"
  5. Min Tolerance: 0.0001"
  1. Bar Feeding Capability
  2. Automatic Tool Changers
  3. Through Tool Coolant Capability

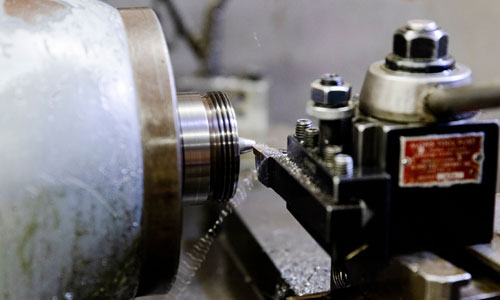

Manual Lathes

  1. QTY: 2
  2. Max Speed: 2000 RPM
  3. Max Turning Diameter: 19"
  4. Max Turning Length: 36"
  5. Min Tolerance: 0.0005"
  1. DRO's
Grinding

Grinding

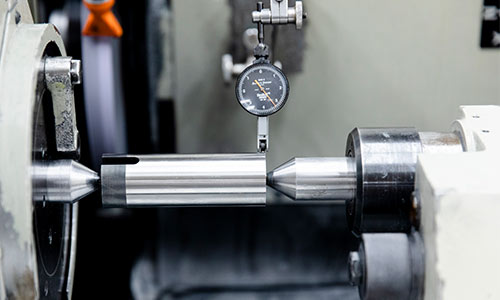

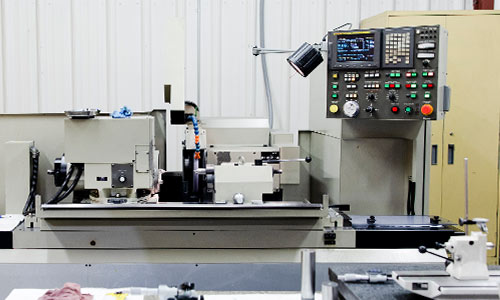

CNC OD Grinder

  1. QTY: 1
  1. Min Tolerance: 0.00001"

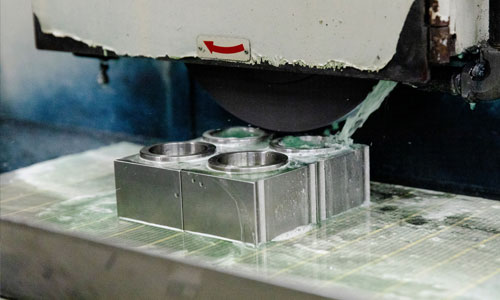

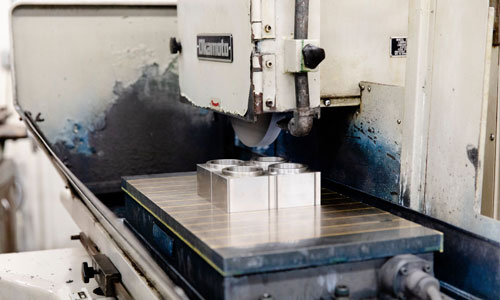

Surface Grinders

  1. QTY: 3
  2. Max Weight Capacity: 150 lbs
  3. Max Travel Distance: 20" x 12" x 10"
  4. Min Tolerance: 0.0001"
  1. DRO's
Quality Control

Quality Control

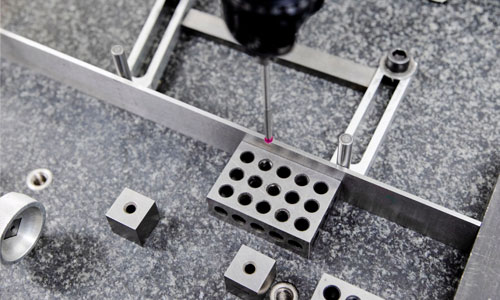

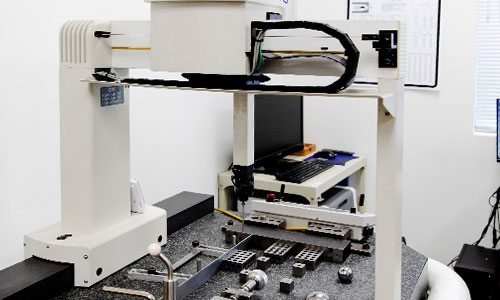

CMM

  1. Max Travel: 16" x 20" x 14"

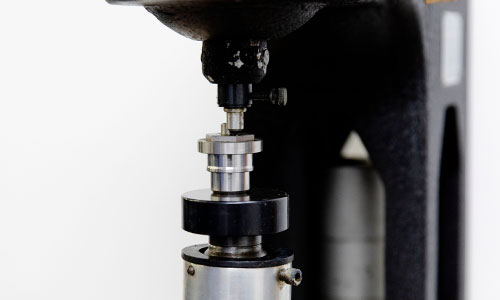

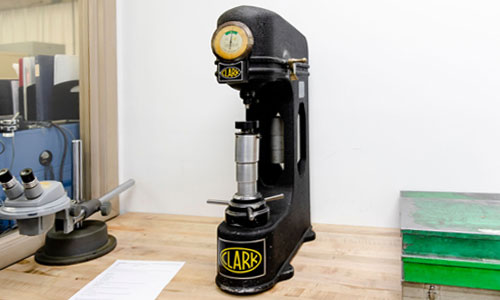

Hardness Tester

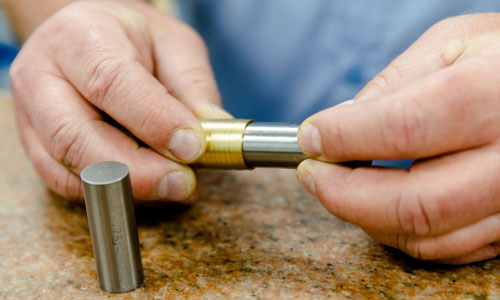

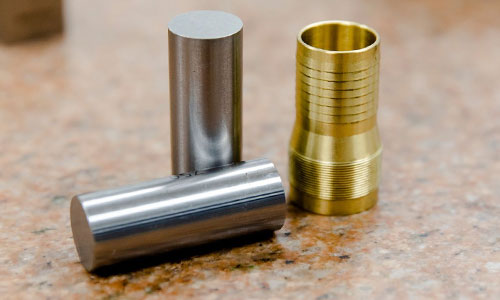

Gauge Blocks/Pins

Calipers

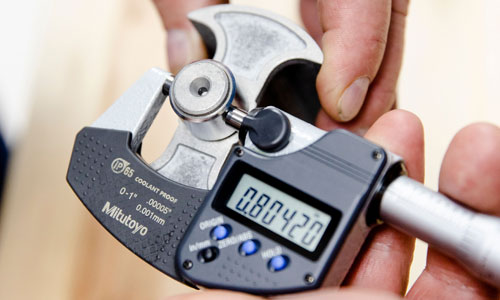

Micrometers

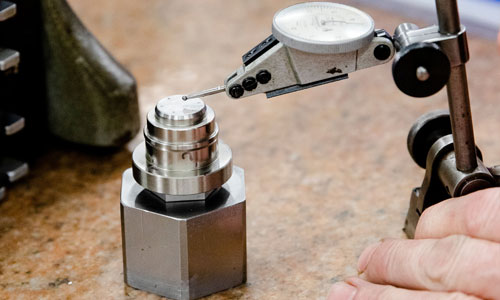

Height Gauges

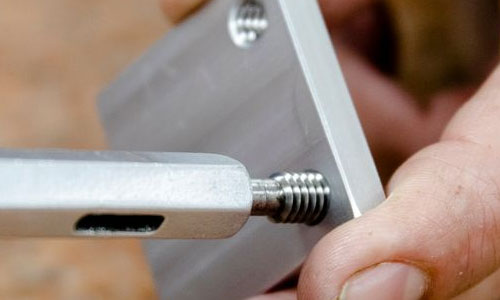

Thread Gauges

Other

Other

Fixture Design

Product Design Consulting

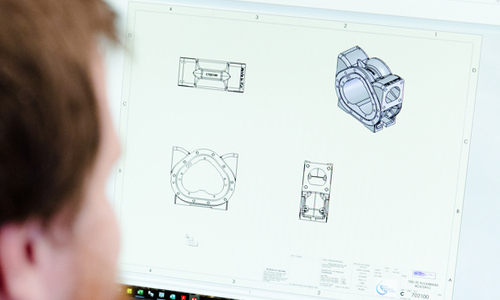

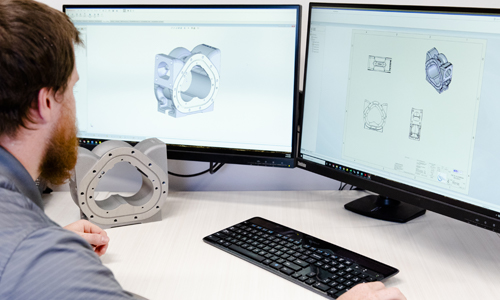

Solidworks

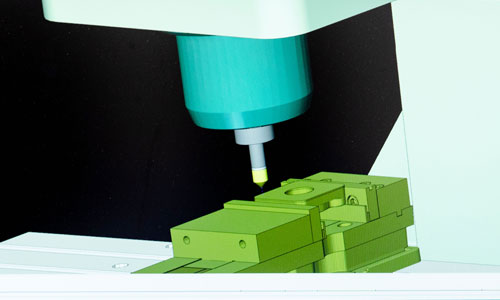

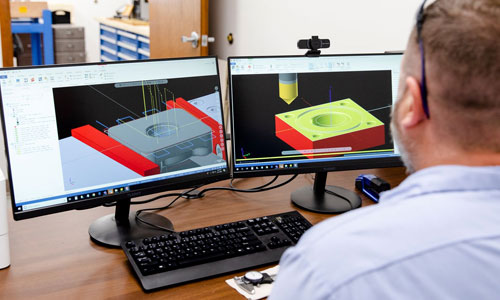

MasterCam

Vulcan

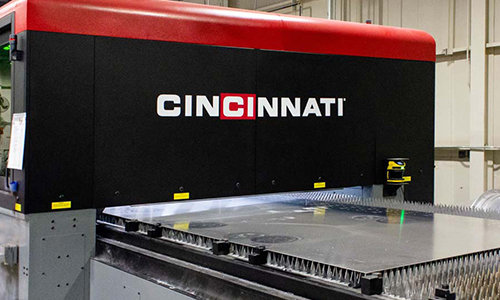

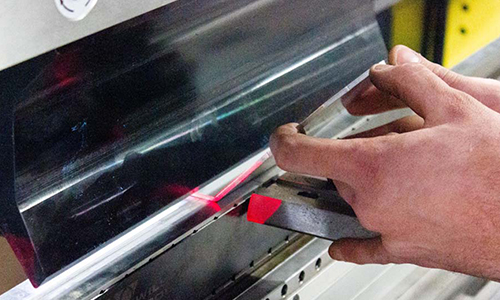

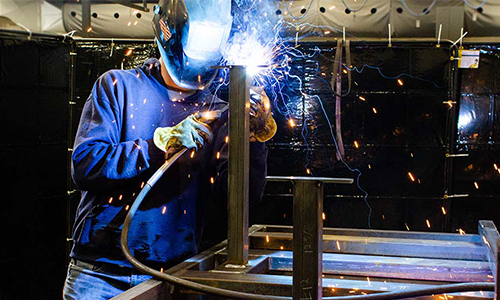

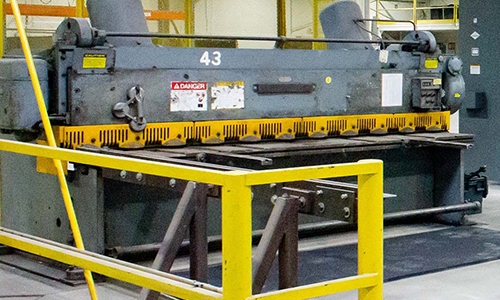

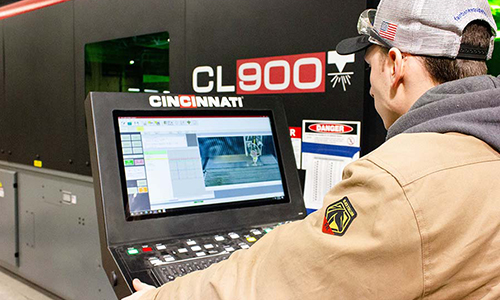

Metal Fabrication

Through Vulcan Manufacturing Systems, we now offer in-company precision metal fabrication services.

Fixture Design

Product Design Consulting
